CITIZEN BAND cibistes LINCOLN 2 :

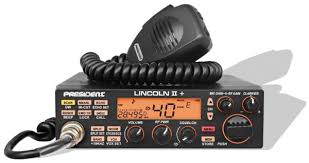

Président LINCOLN 2
Rotary switch and Up/down channel selector
VFO Mode
Volume adjustment and ON/OFF
RF Power
Manual squeltch and ASC
Multi-functions LCD display
Frequencies display
S-meter
Public Address
Vox function (Hands free)
ANL filter , NB and HI-CUT
RF Gain / Mike gain
Clarifier
Channels and memories scan
6 Memories
CTCSS (38 tones)
DCS (104 codes)
Dim
MENU fonction key
Beep Function
Roger Beep
Mode switch AM/FM/LSB/USB/CW
Dual watch
Key locking
SWR (Power Reading /SWR)
Preset 9/19
TOT (Time Out Timer) adjustable
Front microphone plug
External loudspeaker jack
Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg
General
Bands:10
Modulation modes: AM/FM/LSB/USB/CW
Frequency ranges: from 28.000 MHz to 29.700 MHz
CTCSS: 38 tones
DCS:104 codes
Antenna impedance: 50 ohms
Power supply:13.2 V
Dimensions H x W x D (in mm):52 x 170 x 250
Weight: 1.4 kg
Accessories supplied: power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws
Transmission:
Frequency allowance:+/- 300 Hz
Carrier power:12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference:inferior to - 50 dBc
Audio response:300 Hz to 3 kHz
Emitted power in the adj. channel:inferior to 20 µW
Microphone sensitivity:3 mV
Drain: 6 A (with modulation)
Modulated signal distortion:1.8 %
Reception:
Maxi. sensitivity at 20 dB sinad: 0,5 μV -110 dBm (AM)
0,35 μV -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
Frequency response:300 Hz to 3 kHz
Adjacent channel selectivity:60 dB
Maximum audio power:3 W
Squelch sensitivity: mini 0.2 μV - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate frequency rej. rate: 70 dB
Drain :400 mA nominal, 600 mA max
